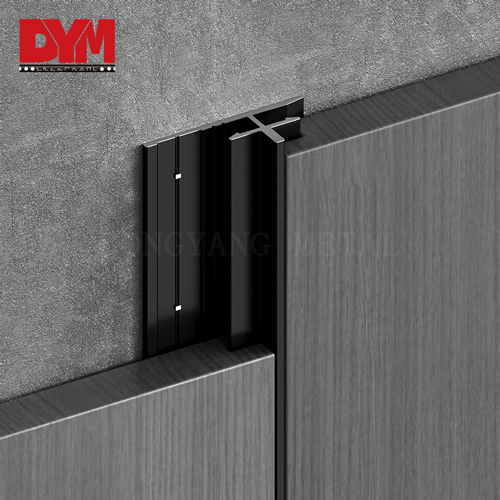

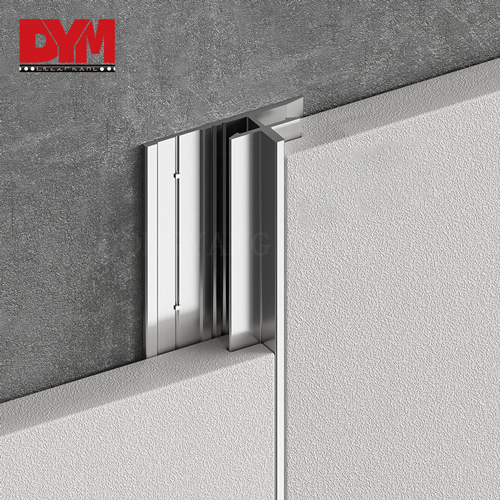

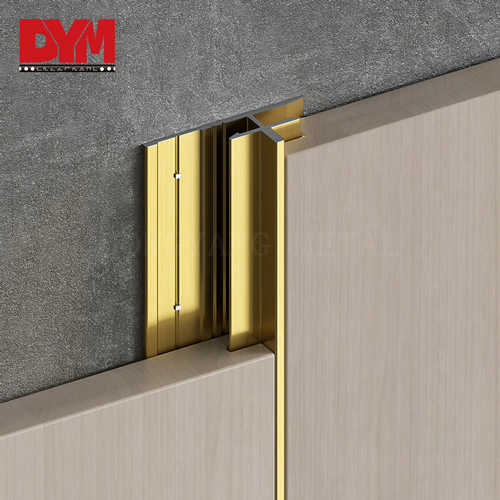

Aluminum Wall Panel Joining Profile
- Model
- DYM-P-136
Item specifics
- Product Type
- Wall Panel Joint / Joining Profile
- Length
- 2.5m/ 2.7m or Customized
- Colors
- Silver, Matte Black, Champagne Gold, Custom RAL
- Finish
- Anodized / Powder Coated / Brushed
- Material
- Aluminum Alloy 6063-T5
- Suitable Panels
- PVC, WPC, SPC, Fluted & Decorative Wall Panels
- Thickness
- 0.8mm – 2.0mm (customizable)
- Surface treatment
- Anodized / Brushed / Matte / Polished
- OEM&ODM
- CAD Drawing / Color / Punching / Packaging
Review
Description
DYM - h Profile Wall Panel Trim
Product Overview
Aluminum wall panel joining profile is an architectural aluminum extrusion designed to connect two adjacent wall panels and create a clean, controlled joint between them. The profile accommodates the edges of adjoining panels, helping maintain panel alignment while providing a finished transition at the connection point.
Compared with leaving a raw panel joint exposed, an aluminum joining profile provides a more controlled finishing solution and helps establish a consistent joint line across large wall surfaces.
The profile is especially suitable for wall panel systems where panel alignment, joint consistency and architectural finishing are important.
Specifications
6063-T5 aluminum joining profile for connecting adjacent wall panels and creating a clean, uniform joint. Custom dimensions, lengths, colors and finishes are available for different panel systems.
CODE |
DYM-C-001
|
DYM-C-002
|
DYM-C-003
|
DYM-C-004 | DYM-C-005 |
MM |
5
|
8
|
10
|
12 | 15 |
G |
0.121
|
0.123
|
0.126
|
0.129 | 0.134 |

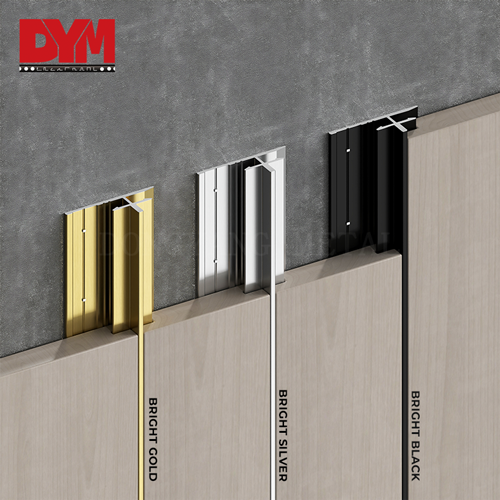

Color Options or Customized
Our OEM manufacturing service supports the development of custom aluminum wall panel joining profiles from CAD drawings or samples. Profile tooling, extrusion, surface treatment, cutting, CNC processing and OEM packaging can be coordinated within one production process.
Matte Finish
Offers a low-reflective surface, ideal for a modern and minimalist look.
Polish Bright
Features a high-gloss surface, enhancing visual brightness and texture.
Brushed
Provides a fine-textured effect, adding tactile and visual depth.
Coating Texture
Available in various colors and textures to suit different design requirements.
Installation Guide

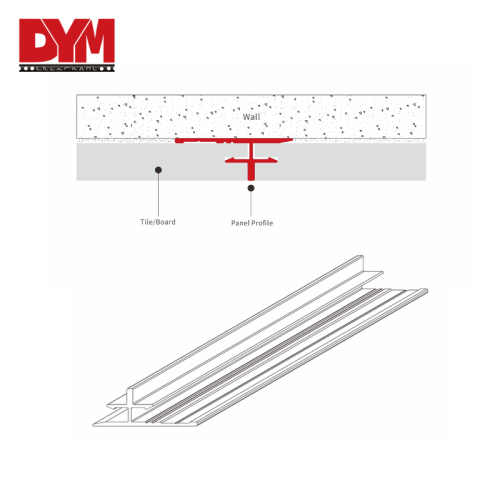

Position the aluminum joining profile along the planned panel connection and insert or secure the edges of the two adjoining wall panels into the profile. Align both panels before final fixing to maintain a straight and consistent joint line. The profile dimensions should be selected according to the actual panel thickness and installation structure.
Applications of Wall Panel Inside Corner Trim
The joining profile can be used together with aluminum wall panel edge trim, internal corner trim, external corner trim and end trim to create a coordinated aluminum finishing system for wall panels.It is particularly suitable when the wall panel system requires a straight, controlled and visually consistent panel-to-panel connection.
