Aluminum External Corner Trim For Wpc Wall Panels
- Model
- DYM-P-203
Item specifics
- Profile Structure
- External Corner / 90° Corner
- Length
- 2.5m/ 2.7m or Customized
- Colors
- Silver, Matte Black, Champagne Gold, Custom RAL
- Finish
- Anodized / Powder Coated / Brushed
- Material
- Aluminum Alloy 6063-T5
- Suitable Panels
- WPC Wall Panels / Decorative Wall Panels
- Thickness
- 0.8mm – 2.0mm (customizable)
- Surface treatment
- Anodized / Brushed / Matte / Polished
- OEM&ODM
- Custom Profile / Size / Finish / Packaging
Review
Description

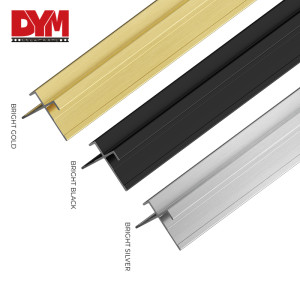

DYM-P-203 Aluminium Wall Panel External Corner Trim
Product Overview
Aluminum Trim for WPC Wall Panels is an external corner profile designed for clean and consistent finishing where two WPC wall panel surfaces meet at an outside 90° corner.
Manufactured from 6063-T5 aluminum alloy, the profile covers exposed WPC panel edges and creates a defined external corner line. It also helps protect vulnerable panel edges from impact and provides a more controlled transition between two wall surfaces.
The external corner profile is suitable for WPC decorative wall panels used in residential, hospitality and commercial interiors. Its dimensions can be customized according to the actual panel thickness, corner structure and installation requirements.
For wall panel manufacturers, distributors and project contractors, the profile can be coordinated with matching edge trims, internal corner trims and joining profiles to create a complete WPC wall panel finishing system.
Specifications
This WPC wall panel trim uses an external corner profile structure specifically designed for outside 90° wall transitions.
The receiving sections can be adjusted according to the WPC panel thickness, allowing the aluminum profile to accommodate different panel systems and installation structures.
Standard lengths include 2.5 m, 2.7 m and 3 m, while custom lengths and dimensions are available for specific projects.
The profile can be supplied with different edge widths, receiving depths and corner dimensions according to CAD drawings, technical specifications or physical samples.
CODE |
DYM-C-001
|
DYM-C-002
|
DYM-C-003
|
DYM-C-004 | DYM-C-005 |
MM |
5
|
8
|
10
|
12 | 15 |
G |
0.121
|
0.123
|
0.126
|
0.129 | 0.134 |
Color Options or Customized
Surface treatments include anodized, brushed, matte, polished and powder-coated finishes.
Available colors include silver, black, gold and champagne, with custom RAL colors available for specific WPC wall panel collections and interior projects.
Matte Finish
Offers a low-reflective surface, ideal for a modern and minimalist look.
Polish Bright
Features a high-gloss surface, enhancing visual brightness and texture.
Brushed
Provides a fine-textured effect, adding tactile and visual depth.
Coating Texture
Available in various colors and textures to suit different design requirements.
Installation Guide
Position the external corner profile over the two intersecting WPC wall panel edges and align the profile vertically along the outside corner.
Secure the profile and panels according to the selected installation system, ensuring that both panel surfaces are properly aligned and the external corner remains straight.
The receiving section should be matched to the actual WPC panel thickness. For customized profiles, sample fitting is recommended before bulk production.
Applications of Wall Panel Inside Corner Trim
DYM can manufacture matching WPC wall panel edge trims, internal corner trims, H joining profiles and end profiles, helping customers develop a coordinated aluminum profile system for their WPC wall panel product range.
