SPC Wall Panel Profile Aluminum F Trim
- Model
- DYM-B-095
Item specifics
- Profile Type
- SPC Wall Panel Edge & Finishing Profile
- Length
- 2.5m/ 2.7m or Customized
- Colors
- Silver, Matte Black, Champagne Gold, Custom RAL
- Finish
- Anodized / Powder Coated / Brushed
- Material
- Aluminum Alloy 6063-T5
- Suitable Panels
- PVC, WPC, SPC, Fluted & Decorative Wall Panels
- Thickness
- 0.8mm – 2.0mm (customizable)
- Surface treatment
- Anodized / Brushed / Matte / Polished
- OEM&ODM
- Custom Profile / Size / Finish / Packaging
Review
Description
DYM - SPC Wall Panel Profile Aluminum F Trim
Product Overview

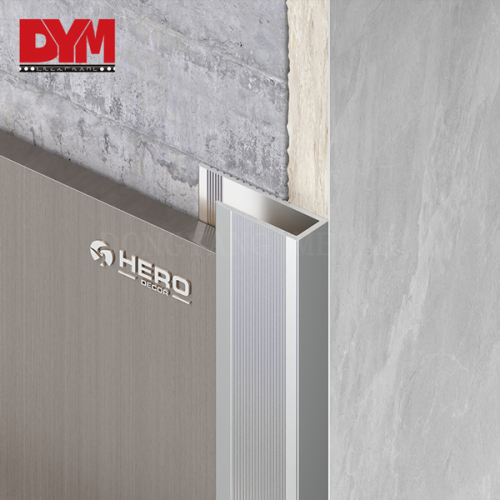

SPC Wall Panel Profile Aluminum F Trim is an architectural aluminum extrusion designed for finishing exposed edges and terminating SPC wall panels. Its F-shaped profile provides a defined receiving section for the panel while creating a clean metal edge along the installation boundary.
The F trim can be used at panel ends, exposed side edges, openings and other transition areas where the cut edge of an SPC wall panel requires a controlled and durable finish.
Manufactured from 6063-T5 aluminum alloy, the profile can be produced according to different SPC wall panel thicknesses and installation requirements. Custom profile dimensions, lengths, colors, surface finishes and machining are available for OEM and wholesale projects.

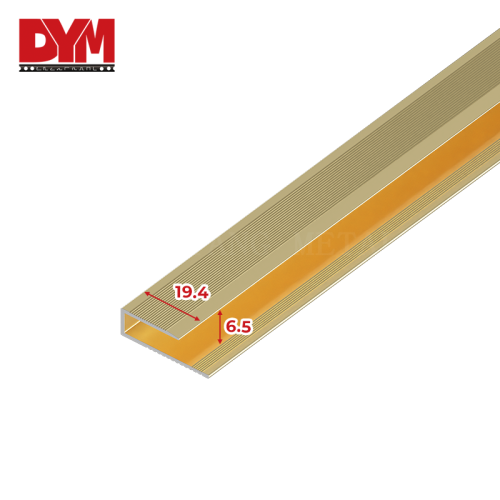

Specifications
The aluminum F trim can be developed according to your panel thickness, edge condition and installation requirements. As an aluminum extrusion manufacturer, we can customize the F trim according to CAD drawings, technical specifications or physical samples. For projects using different SPC wall panel thicknesses, the receiving section can be adjusted to provide a more accurate profile-to-panel fit.
CODE |
DYM-C-001
|
DYM-C-002
|
DYM-C-003
|
DYM-C-004 | DYM-C-005 |
MM |
5
|
8
|
10
|
12 | 15 |
G |
0.121
|
0.123
|
0.126
|
0.129 | 0.134 |

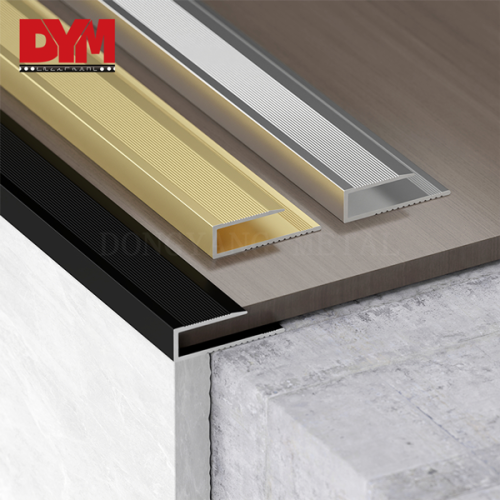

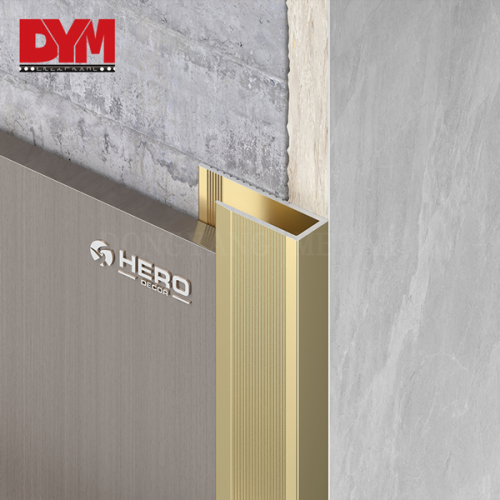

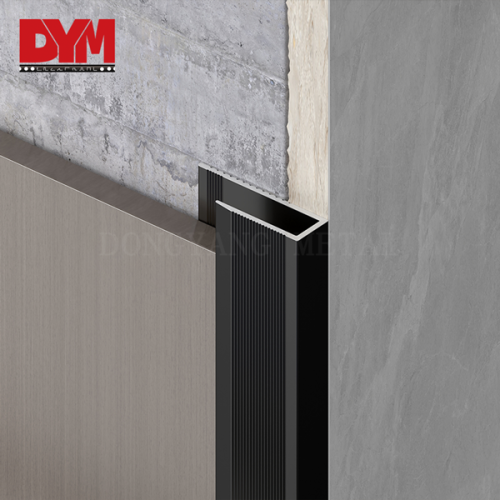

Surface Finishes & Colors
Aluminium wall panel edging trims can be supplied with different surface treatments to match the wall panel material and architectural specification. Silver, black, gold and champagne are suitable for common architectural applications, while custom colors can be developed for branded wall panel systems and project requirements.
Matte Finish
Offers a low-reflective surface, ideal for a modern and minimalist look.
Polish Bright
Features a high-gloss surface, enhancing visual brightness and texture.
Brushed
Provides a fine-textured effect, adding tactile and visual depth.
Coating Texture
Available in various colors and textures to suit different design requirements.
Installation Guide
1. Measure the SPC panel thickness and installation position.
2. Position the F trim along the exposed panel edge.
3. Insert or seat the panel into the receiving section of the profile.
4. Align the profile with adjacent panels or architectural surfaces.
5. Fix the profile and panel according to the project installation method.
Applications of Aluminium Wall Panel Edging Trim
The F trim can also be coordinated with aluminum wall panel internal corner trim, external corner trim, H joining profiles, U profiles and end trims to create a complete SPC wall panel profile system.
