Aluminium Wall Panel External Corner Trim
- Model
- DYM-P-203
Item specifics
- Profile Structure
- 90° External Corner
- Length
- 2.5m/ 2.7m or Customized
- Colors
- Silver, Matte Black, Champagne Gold, Custom RAL
- Finish
- Anodized / Powder Coated / Brushed
- Material
- Aluminum Alloy 6063-T5
- Suitable Panels
- PVC, WPC, SPC, Fluted & Decorative Wall Panels
- Thickness
- 0.8mm – 2.0mm (customizable)
- Surface treatment
- Anodized / Brushed / Matte / Polished
- OEM&ODM
- Custom Profile / Size / Finish / Packaging
Review
Description

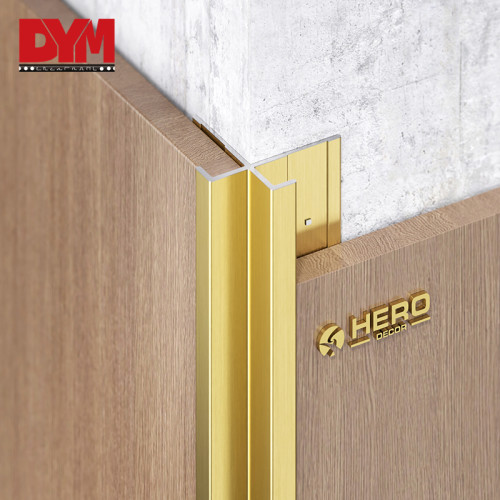

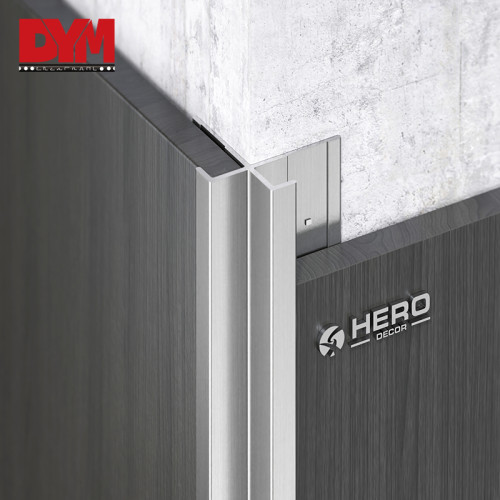

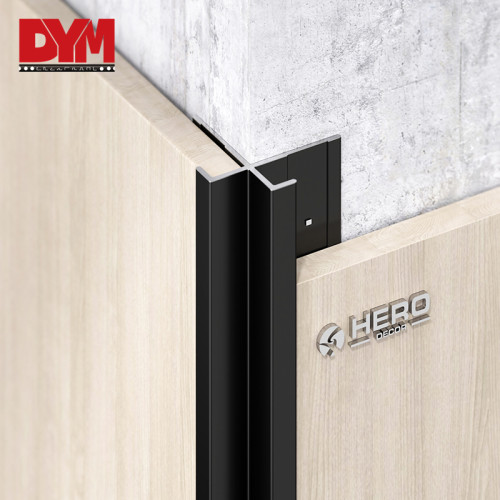

DYM-P-203 Aluminium Wall Panel External Corner Trim
Product Overview
Aluminium Wall Panel External Corner Trim is an architectural aluminum profile designed for clean and durable finishing at external 90° corners of wall panel systems.
Manufactured from 6063-T5 aluminum alloy, the profile covers and protects exposed panel edges where two wall surfaces meet, creating a straight, consistent corner line. It is suitable for PVC, WPC, SPC, fluted, wood and other decorative wall panel systems.
An external corner is one of the most visible and exposed areas of a wall panel installation. A properly designed aluminum corner profile helps control panel alignment, protect vulnerable edges and provide a professional transition between two wall surfaces.
The profile can be produced in different dimensions and configurations to match the actual panel thickness and installation structure. It can also be coordinated with aluminum edge trims, internal corner profiles, H joining profiles and end trims for a complete wall panel finishing system.
Specifications

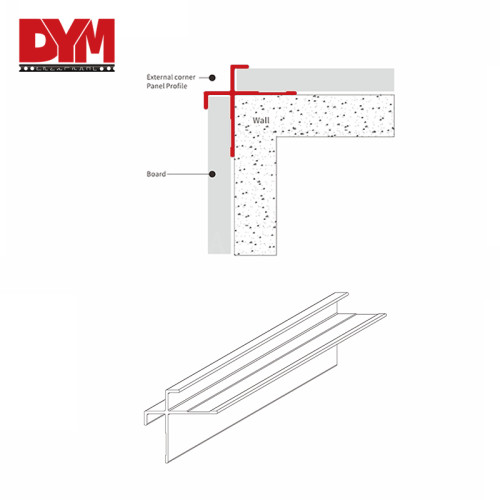

The external corner trim is available in L, V, U and customized profile structures, depending on the panel construction and required corner detail.
Common panel-fitting sizes include 6 mm, 8 mm, 10 mm, 12 mm and 15 mm, with customized dimensions available for special wall panel systems.
Standard profile lengths are typically 2.5 m or 2.7 m, while customized lengths can be produced according to project requirements, packaging specifications and transportation conditions.
For large commercial or residential projects, matching profiles can be developed to maintain consistent dimensions, corner geometry and finishing throughout the wall panel system.
CODE |
DYM-C-001
|
DYM-C-002
|
DYM-C-003
|
DYM-C-004 | DYM-C-005 |
MM |
5
|
8
|
10
|
12 | 15 |
G |
0.121
|
0.123
|
0.126
|
0.129 | 0.134 |

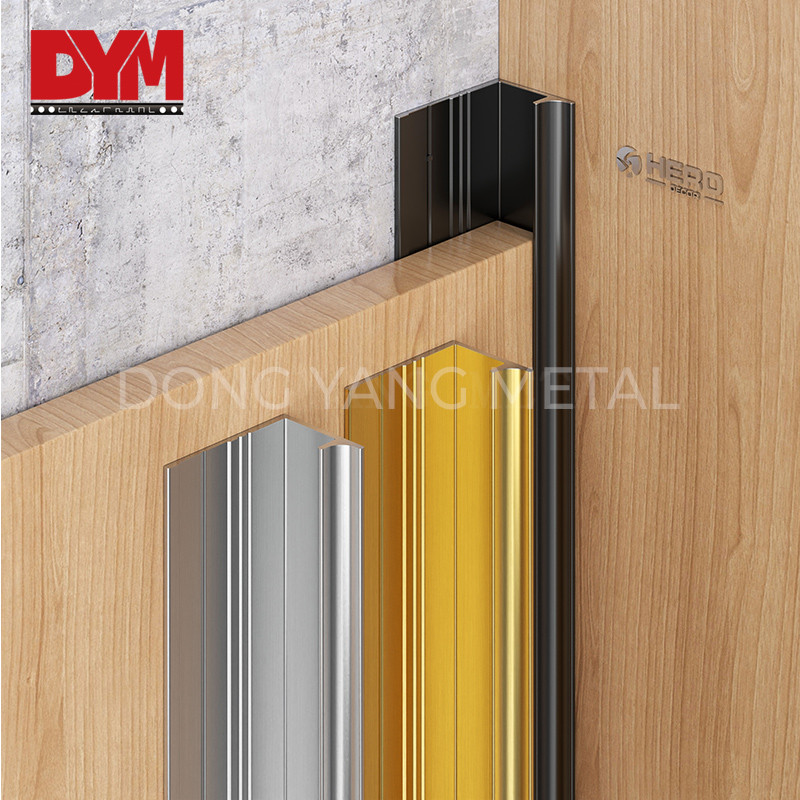

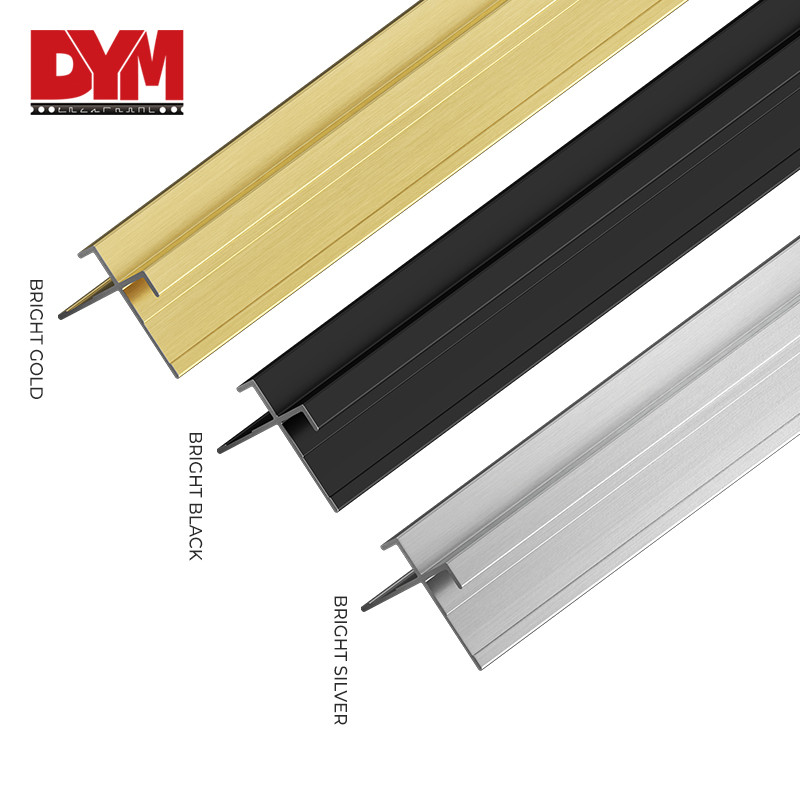

Color Options or Customized
DYM supports OEM and ODM production for importers, distributors, contractors and wall panel brands. Available surface finishes include anodized, brushed, matte, polished and powder-coated aluminum.
Common colors include silver, black and gold, while custom RAL colors can be developed to match specific wall panel collections, interior designs or brand requirements.
Matte Finish
Offers a low-reflective surface, ideal for a modern and minimalist look.
Polish Bright
Features a high-gloss surface, enhancing visual brightness and texture.
Brushed
Provides a fine-textured effect, adding tactile and visual depth.
Coating Texture
Available in various colors and textures to suit different design requirements.

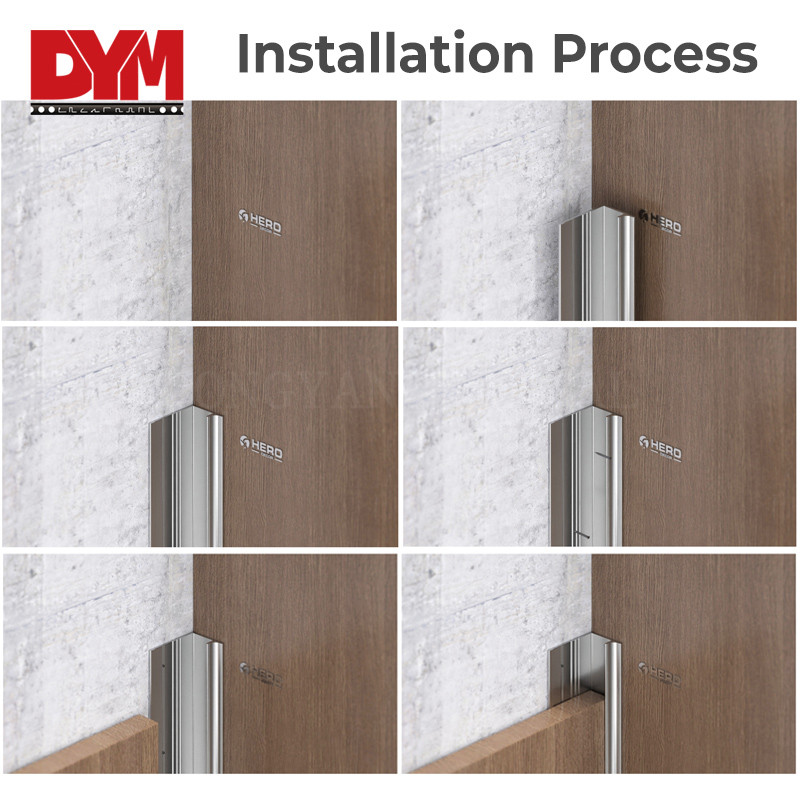

Installation Guide
Position the external corner trim over the two intersecting wall panel edges and align the profile vertically along the outside corner. Secure the profile and wall panels according to the selected installation system, ensuring that both panel surfaces remain properly aligned.
The receiving section should be matched to the actual wall panel thickness to achieve a stable fit and consistent corner line. For custom profiles, sample testing is recommended before mass production.

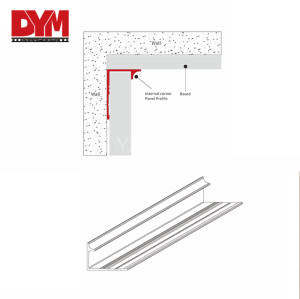

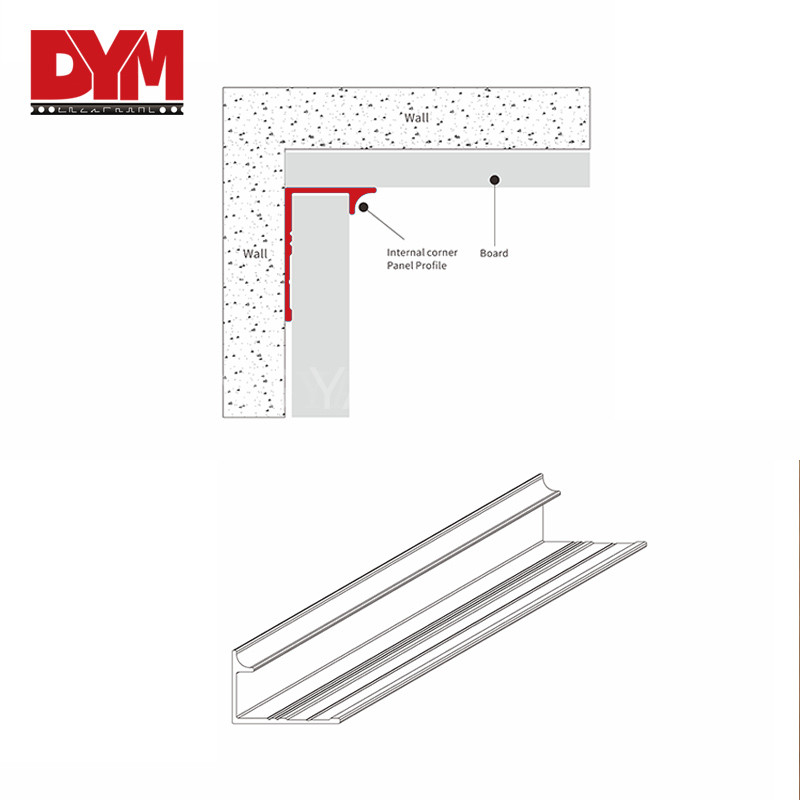

Applications of Wall Panel Inside Corner Trim
DYM can manufacture matching internal corner trims, edge trims, end trims and H joining profiles, allowing customers to develop a complete aluminum wall panel profile system from a single OEM source.
